Pallet Flow Racking in Belgium

Leave
a request
and we will calculate the final price
Privacy Policy

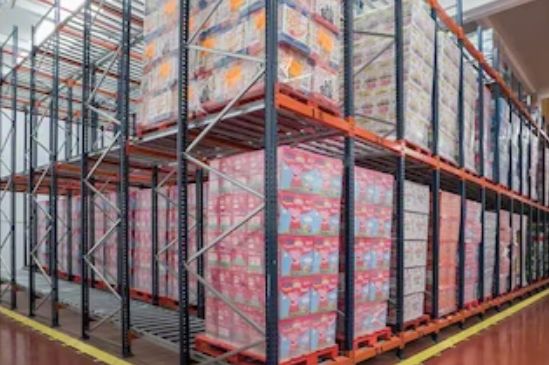

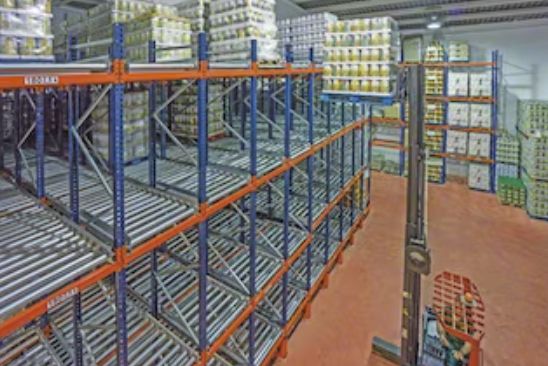

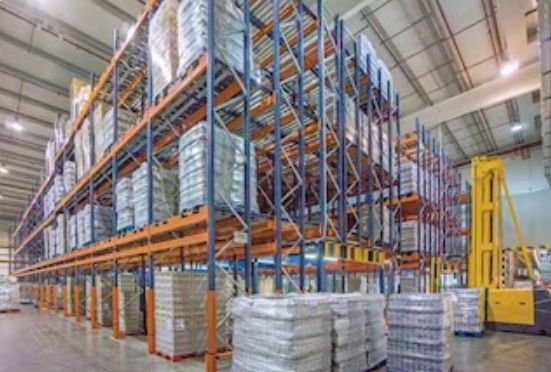

Pallet flow racking (gravity flow racking) is a compact, high-density storage system where pallets move automatically from the loading aisle to the picking aisle by gravity, via slightly inclined roller conveyors. Perfect FIFO rotation — the first pallet loaded is always the first retrieved.

MagazijnService.be installs pallet flow racking throughout Belgium. We work with leading suppliers including Mecalux and AR Racking.

Advantages of Pallet Flow Racking

  • Maximum space utilisation — no internal aisles; channels can extend the full depth of the warehouse
  • Automatic FIFO rotation — essential for perishables, pharmaceuticals, and date-coded stock
  • Separate loading and unloading aisles — forklifts on both sides can operate simultaneously without interference
  • Faster picking — all SKUs are available in the same aisle; minimal forklift travel
  • Multiple SKUs — one SKU per channel, each channel independent
  • Energy savings in cold storage — reduced cooled volume lowers refrigeration costs

Applications

  • Food and perishables — automatic FIFO prevents stock expiry
  • Pharmaceutical and healthcare — strict date-code compliance built into the system
  • Buffer between production and shipping — dynamic connection between work zones

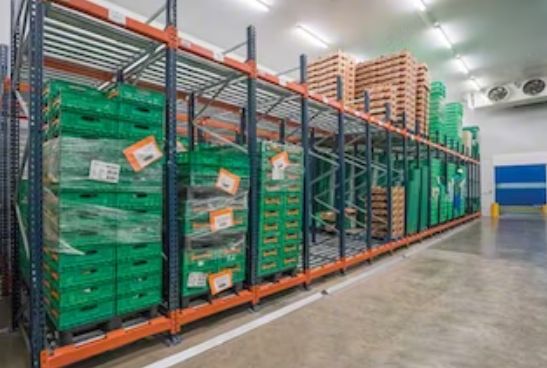

  • Cold and frozen storage — compact footprint, high energy efficiency

Request a Quote

We design and install pallet flow racking in Antwerp, Ghent, Brussels, Mechelen and all of Belgium. Free site visit and layout design. Quote within 24 hours.

Our works
Rolloff
See also
Shelf Racks & Shelving Units in Belgium
Shelf Racks
Automatic Trilateral Warehouse Cranes in Belgium
Trilateral Cranes
Stow Racking in Belgium
Stow
OHRA Racking in Belgium
Ohra
Big Box Rack M7 — Heavy Duty Picking Racking in Belgium
Big Box Rack M7
Mecalux pallet racking in Belgium — specialist & installer
Mecalux
FAQ
Question - answer
What are flow-through racks?

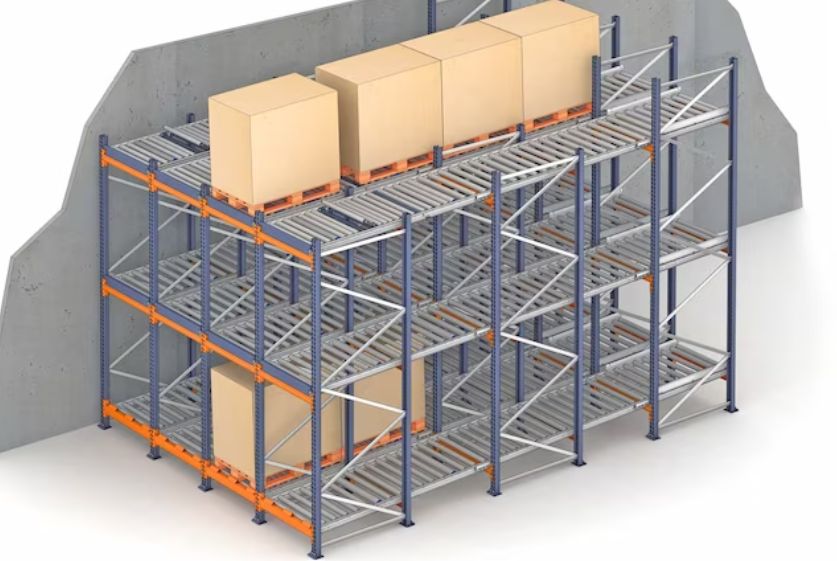

Rollover racks, also known as pallet flow racks or pallet flow, are the most dynamic system on pallet storage on the market. Their structure is a combination of racks and angled rails with rollers over which the load slides. Thus, gravity is used to load and unload pallets. Available storage space is also better utilized by eliminating aisles.
What are the advantages and disadvantages of flow-through racks?
Storage on flow racks offers several advantages. Above all, it is the most flexible way to compact goods with the best operational performance. Thus, it is an ideal solution for different types of warehouses. Its implementation ensures excellent inventory control. Since the aisle for loading and unloading is separated, there is no interference. And because only one SKU is stored from each storage aisle, it is easier to find and retrieve products. Rollover racks also naturally guarantee maximum use of available space. Installing deep channels can lead to some capacity loss in height, due to the slope required for the system to function (about 4%).
What are the differences between flow-through racks and drive-in racks?
One of the main differences between the two systems is how the entry and exit is done. In drive-in racks, the forklift drives through the storage aisles to place the pallets. With roll-through racks, on the other hand, the forklift does not drive around, as it places the pallets at the entrance to the chosen storage channel and rolls them to their place completely autonomously. This makes dropping off and taking out pallets in roll-through racks significantly faster and safer. Another important difference is the variety of SKUs stored, which is greater in pallet flow-through racks. Indeed, each channel can contain a different SKU, whereas in drive-in racks, all channels in the same storage lane contain only one SKU.
What is the difference between flow-through racks and pushback racks?
The main difference is the way inventory management is done. In flow racks, there are two aisles (one for loading and one for unloading) and the FIFO (First In First Out) principle is used. This means that the first pallets placed in a channel are also the first ones taken out. For pushback racking, on the other hand, LIFO (Last In First Out) applies: since there is only one aisle, the last pallet placed in a channel is taken out first. In warehouses where perishable goods are managed (food or pharmaceutical items, for example), flow-through racks are the ideal alternative. SKUs with the shortest shelf life can easily be taken out on priority.
