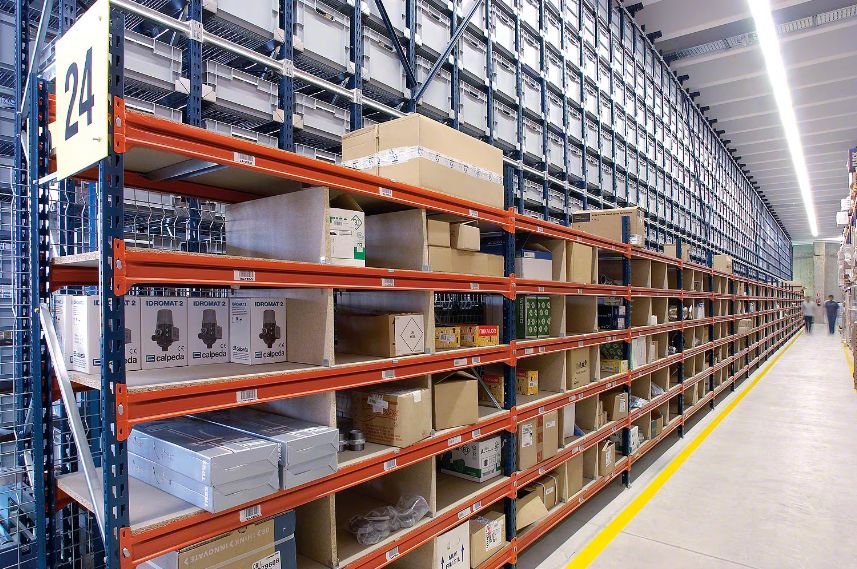

The Big Box Rack M7 (also known as heavy-duty picking racking or grootvakstelling) is a manual storage system designed for large, heavy and irregularly shaped products that do not fit on standard pallet racking. MagazijnService.be supplies and installs Big Box Rack M7 systems throughout Belgium.
What Is the Big Box Rack M7?
The M7 is a rack system based on the "man to goods" principle: workers access products by walking along integrated walkways and platforms within the racking structure. This makes it ideal for items that are too large or awkward for conveyor or forklift handling.
Key characteristics:
- Large bay openings — adapted for oversized goods
- Integrated walkways with stair access at each level
- Manual picking from all levels without a forklift
- Optimal for slow-moving, high-variety stock
- Can be combined with standard pallet racking in the same warehouse
Typical Applications
The Big Box Rack M7 is widely used in:
- Spare parts warehouses — automotive, industrial machinery, HVAC components
- Retail distribution — bulky consumer goods, furniture, appliances
- Manufacturing stockrooms — raw materials, work-in-progress, tooling
- Technical depots — cables, pipes, profiles, construction materials
Technical Specifications
Standard M7 configuration parameters:
- Bay width: 1800–2700 mm (custom widths available)
- Bay depth: 600–1200 mm per side (double-sided access)
- Level height: adaptable to product dimensions
- Load per shelf level: up to 1000 kg
- Total structure height: up to 12 m with multiple mezzanine walkway levels
- Floor: steel grating or solid deck panels
- Finish: hot-dip galvanised or powder-coated
Safety and Compliance
All Big Box Rack M7 structures installed by MagazijnService.be comply with:
- EN 15512 — steel static storage systems, safety performance
- EN 1090 — structural steel components
- Belgian CODEX — workplace safety requirements for mezzanine access and guardrails
Installation includes load notices, safety guardrails, non-slip walkway surfaces and an installation inspection report.
Delivery and Installation in Belgium
MagazijnService.be designs, supplies and installs Big Box Rack M7 systems across Belgium:
- Antwerp, Mechelen, Lier — Antwerp province
- Ghent, Brussels, Leuven — central Belgium
- Liège, Namur, Charleroi — Wallonia
- Bruges, Kortrijk — West Flanders
Request a Quote
Big Box Rack M7 systems are custom-designed for each warehouse. Contact MagazijnService.be for a free site visit and racking layout proposal.
